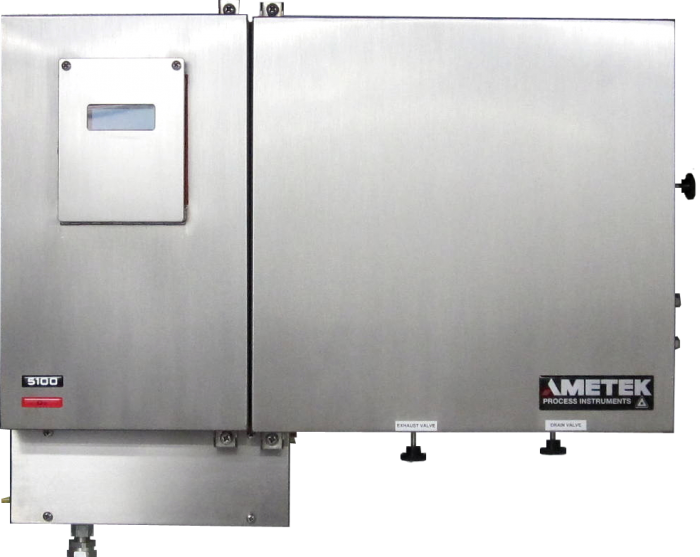

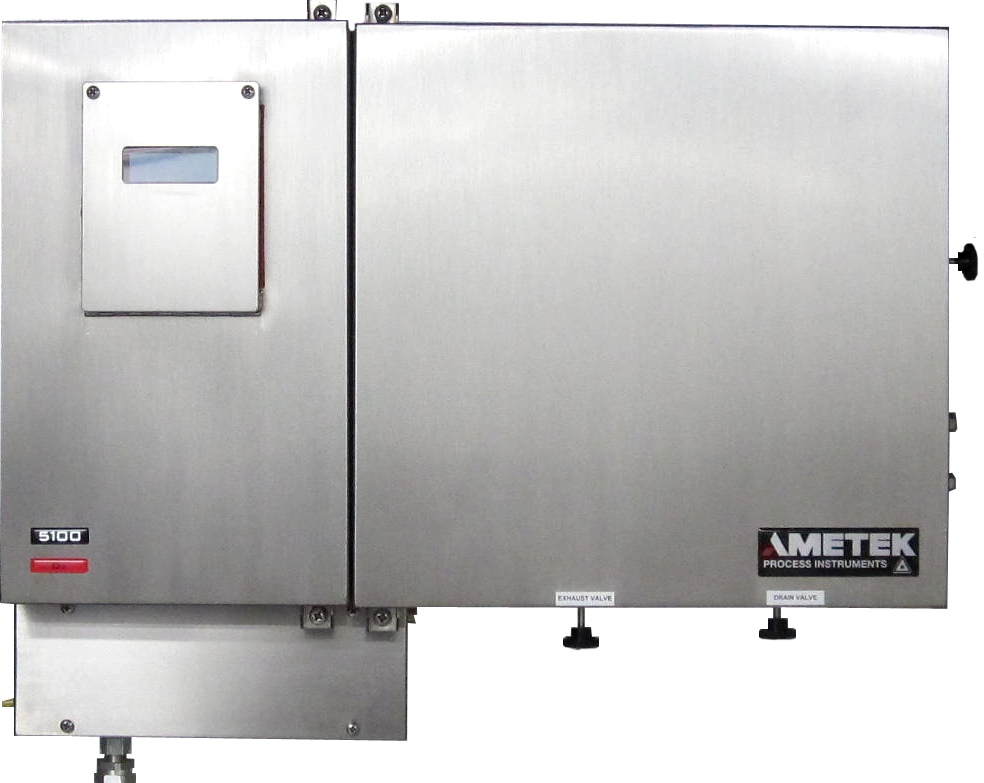

5100 HD Gas Analyzer (5100 HD TDLAS)

5100 HD Gas Analyzer (5100 HD TDLAS)

Features

5100HD Based on Tunable Diode Laser Absorption Spectroscopy (TDLAS)

The 5100HD hosts a dual laser platform. Two separate lasers are installed in the instrument, sharing a common optical path through the sample, enabling the measurement of two analytes simultaneously. This results in significant cost savings to our customers. Where the required concentrations of the analytes differ considerably such that different path lengths are required, two sample cells are used. The 5100HD is also capable of dual stream analysis, and can measure any two combinations of water vapor, methane, hydrogen sulfide, carbon dioxide, and oxygen in process or flue gas.
Designed to handle sample gases with high dew points, the 5100HD standard version has its sample cell heated to a maximum of 100°C. A version is also available for 150°C.
A key feature of this analyzer is the use of sealed reference cells, which contain known amounts of analyte gases measured, for referencing the emission wavelengths of the lasers. The use of reference cells enables both the ability to line-lock the lasers and to continuously verify the optical system performance.

Industrial

  • Oil & Gas
  • Chemical & Petrochemical

Description

Specifications

Laser Classification Class 1m
Dynamic Range 250 mAU (mili-Absorbance Units)
Limit of Detection 0.1 mAU
Speed of Response <2 second photometric response. Total system response is dependent on sample flow rate.
Accuracy ±1 mAU or ±2%, whichever is greater
Repeatability ±1 mAU or ±2%, whichever is greater
Independent Linearity ±1 mAU or ±2%, whichever is greater
Stability 0.5% of full scale range
24 hour zero drift <1 mAU
Inputs One non-isolated analog input configurable as 0-5 V or 0-20 mA
One optically isolated discrete DC input
Front panel keypad
Outputs 4 line x 20 character alphnumeric VF display
Fast Ethernet (IEE802.3)
RS485 serial port, isolated (supports Modicon MODBUS RTU)
RS232 serial port (for service use only)
One isolated 4-20 mA analog standard, a second output available as an option
Four dry contacts (contact rating 30VAC, 60VDC, 100VA resistive)
Electrical Requirements 120VAC (108-132V); 47-63 Hz or 240VAC (216-264V); 47-63 Hz
Power Requirements <25W (w/o sample cell heater); <105W (w/sample cell heater)
Sample cell pressure 70-170 kPa absolute (10 to 25 psia)
Ambient temperature -20ºC to +50ºC (-4ºF to +122ºF)
Ambient humidity 0-90%, non-condensing
Maximum altitude 2000 m
Pollution degree 2
Sample flow rate 1-10 lpm (2-20 SCFH)
Dimensions (HxWxD) 64.23 cm x 83.03 cm x 29.53 cm (25.29″ x 32.69″ x 11.63″)
Weight 60 kg (132 lb)
Certificate ATEX and IECEx Zone 2 T3 (T4 for 24 VDC version), CE, IP 65, NEMA 4X
INMETRO Certification for Zone 2 – Ex nA nC ic op is IIC T3 Gb, IP65
North American (NEC) Class I, II, III, Division 1 Groups B-D, F, G, T3, CE, IP65, NEMA 4X
Zone 1 (CEC)
