Busbar Support

Busbar Support

Features

ABS Adjustable Busbar Support Profile

  • For use with ABS Adjustable Busbar Support Insulator Modules
  • Drill holes in field for custom distances between phases
  • Improve bending resistance by interlocking or stacking two profiles
  • Attach profiles together or attach profile to the panel structure using ABS Adjustable Busbar Support ProfileĀ  Stiffener
  • RoHS compliant

3.4 ABS

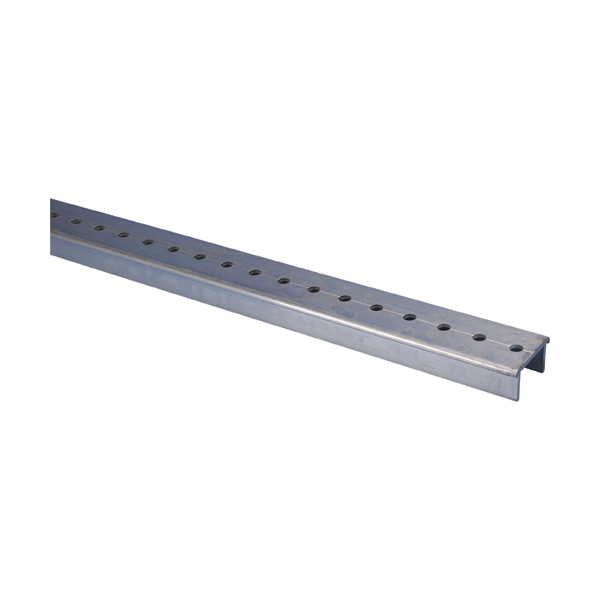

ABS Adjustable Busbar Support Perforated Profile

  • For use with ABS Adjustable Busbar Support Insulator Modules
  • Factory punched holes for quick assembly
  • Improve bending resistance by interlocking or stacking two profiles
  • Attach profiles together or attach profile to the panel structure using ABS Adjustable Busbar Support Profile Stiffener
  • RoHS compliant

3.4 ABS perforated

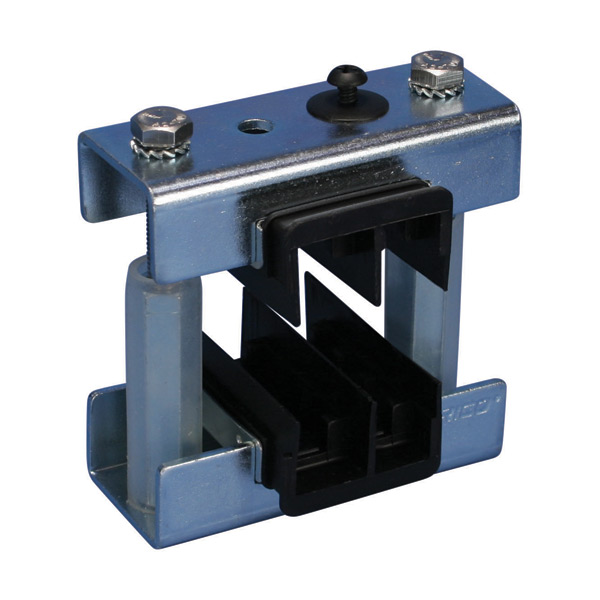

ABS Adjustable Busbar Support Insulator Module

  • Modules provide flexibility to select distance between phases and supports
  • Extremely robust construction
  • Halogen free insulators
  • RoHS compliant

3.4 ABS insulator

Adjustable Flat Busbar Support Kit

  • Kit includes rail, insulators and mountable extension arms
  • Adjustable distances between phases
  • Adjusts quickly to accommodate multiple busbar thicknesses
  • High resistance to short-circuit forces
  • Provides excellent electrical protection for equipment
  • Three phase with neutral circuit
  • Halogen free
  • RoHS compliant

3.4 Flat busbar kit

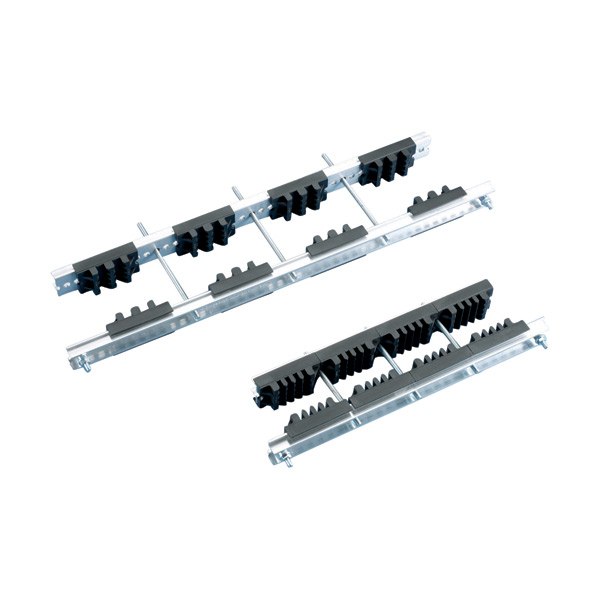

CABS Busbar Support Kit

  • For all busbar types and nVent ERIFLEX Erilink busducts
  • Improve bending resistance by interlocking or stacking two profiles
  • Quick and easy to install
  • Halogen free insulators
  • RoHS compliant

3.4 CABS

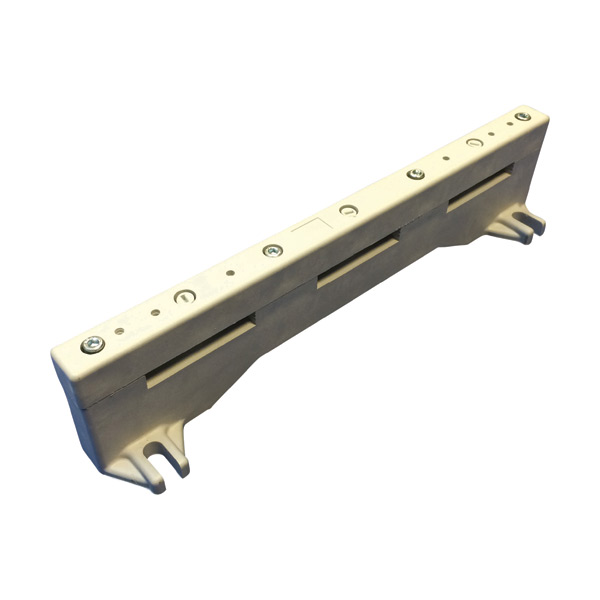

CFBS Flat Busbar Support

  • Universal busbar support
  • End cover available to prevent busbar from sliding out of position
  • Clips available to accommodate multiple busbar widths
  • RoHS compliant

3.4 CFBS

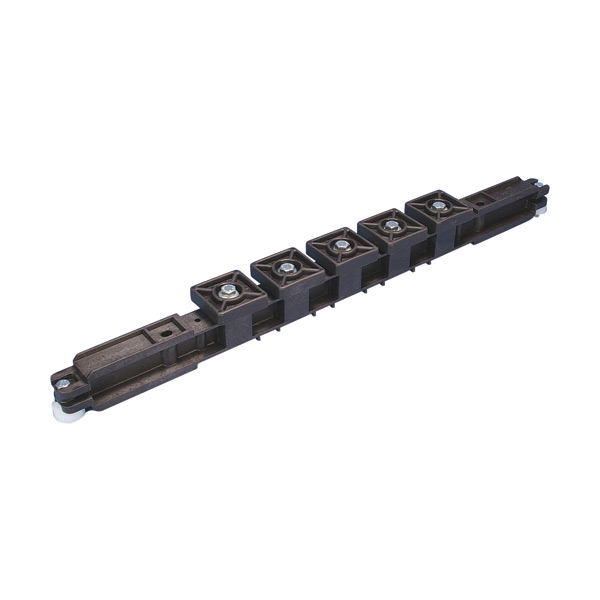

FBS Flat Busbar Support

  • Support for threaded busbars
  • Three phase with neutral circuit
  • Plastic positioning pin for bar location
  • Adjusts quickly to accommodate multiple busbar widths
  • Protection screen can be fixed using spacers
  • A ground can be mounted on either side
  • Halogen free
    Material: Steel; Glass Fibre Reinforced Polyamide; Aluminum

3.4 FBS

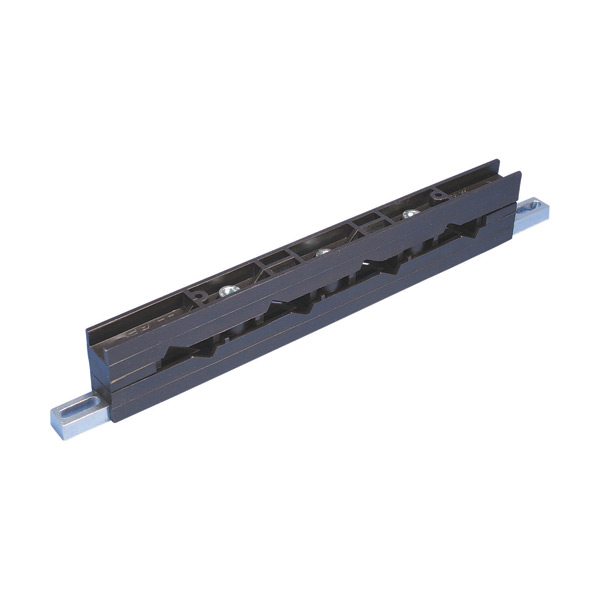

FBSS Flat Busbar Support

  • Supports busbars at an angle for easy connections
  • Includes mounting holes for direct fixing of protection screen
  • Adjustable arms for easy mounting
  • Three phase with neutral circuit
  • Halogen free

3.4 FBSS

UCFBS-60-T Busbar Support

  • Universal busbar support
  • End cover available to prevent busbar from sliding out of position
  • Halogen free
  • RoHS compliant

3.4 UCFBS 60T

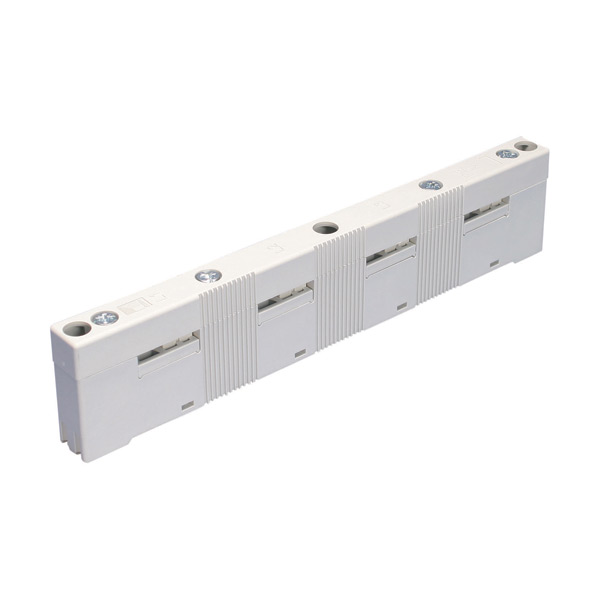

UCFBS-60-TN Busbar Support

  • Universal busbar support
  • Three phase with neutral circuit
  • End cover available to prevent busbar from sliding out of position
  • Halogen free
  • RoHS compliant

3.4 UCFBS 60TN

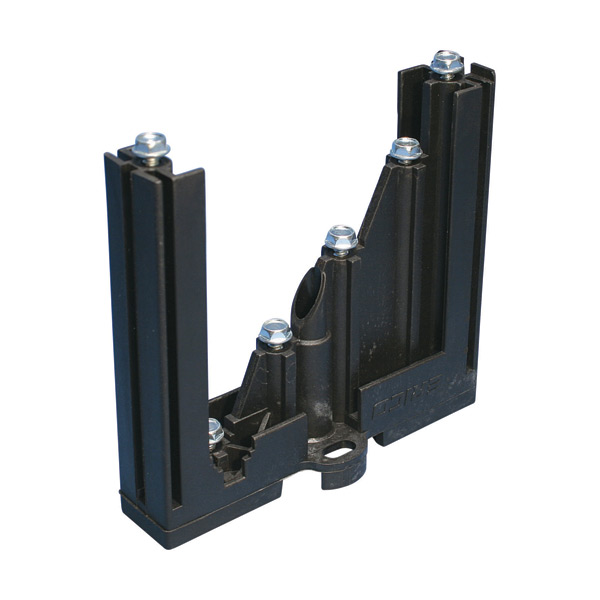

BS-125A Four Pole Insulating Support

  • Create custom four pole distribution blocks for an electrical distribution system
  • Protection screen can be attached directly to the support
  • Includes screws to mount threaded copper busbars
  • Clips on to DIN rail using DR-CLIP or mounts with screws
  • Halogen free
  • RoHS compliant

3.4 BS 125A

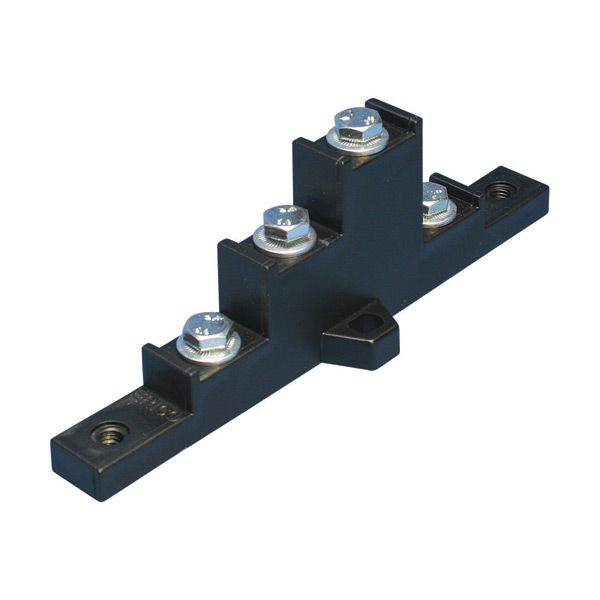

BS-250A Four Pole Insulating Support

  • Create custom four pole distribution blocks for an electrical distribution system
  • Mounts with screws
  • Protection screen can be fixed using spacers
  • Halogen free
  • RoHS compliant

3.4 BS 250A

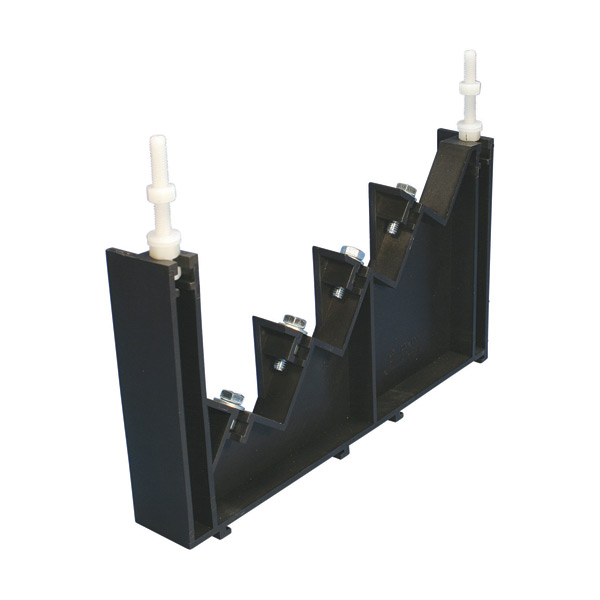

BS-400A Four Pole Insulating Support

  • Create custom four pole distribution blocks for an electrical distribution system
  • Protection screen can be attached directly to the support
  • Includes screws to mount threaded copper busbars
  • Easily clips onto DIN rail or mounts to panel with screws
  • Halogen free
  • RoHS compliant

3.4 BS 400A

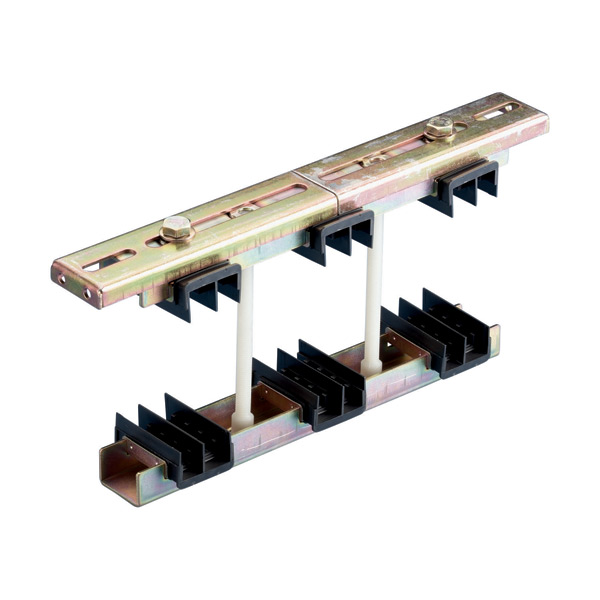

Universal Busbar Support

3.4 universal busbar support

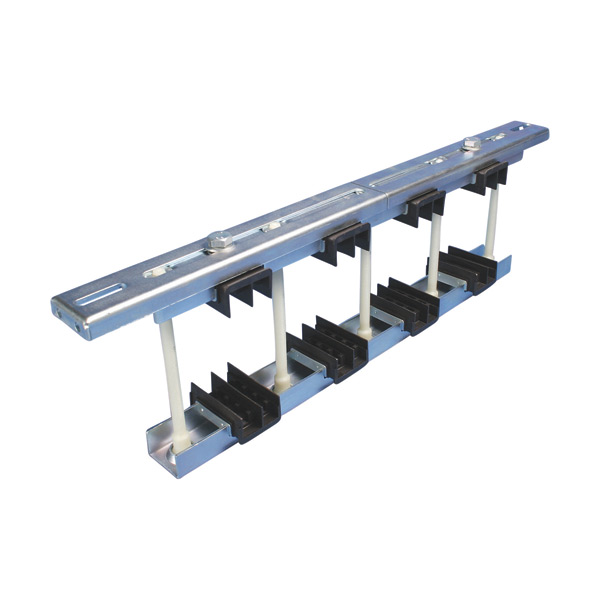

Universal Busbar Support with Neutral Circuit

3.4 universal neutral circuit

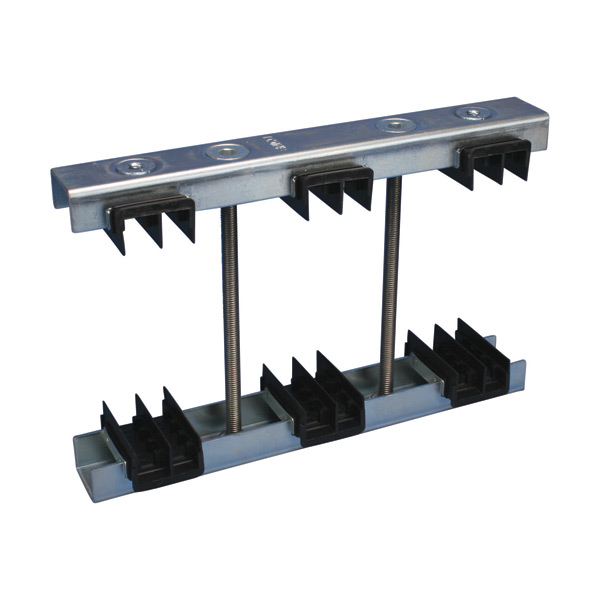

Universal Busbar Support, High Ampacity

3.4 universal high ampacity

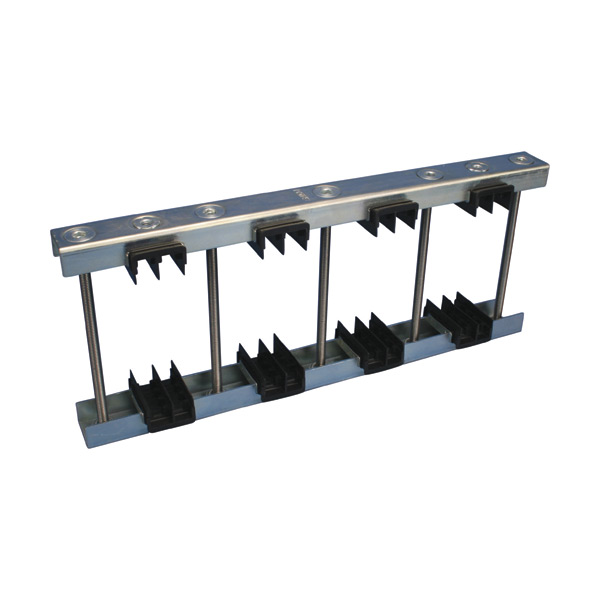

Universal Busbar Support with Neutral Circuit, High Ampacity

3.4 universal neutral high ampa

  • Universal fixing system
  • Installs quickly and easily
  • Extremely robust construction
  • Adjustable arms for easy mounting
  • Halogen free insulators





Description

Type

  • Adjustable Busbar Supports
  • Adjustable Flat Busbar Supports
  • Compact Adjustable Busbar Supports
  • Compact Reinforced Busbar Supports
  • Flat Busbar Supports
  • Four Pole Insulating Supports
  • Universal Busbar Supports

Application

  • Heavy-duty power connection support
  • Flat, on edge, inclined busbar support
  • Universal versatile support
  • Fixed or adjustable busbar support

Related Market

  • Power distribution switchgear
  • Marine transportation
  • Machinery manufacturing
  • Busduct
  • Power generation
