Features

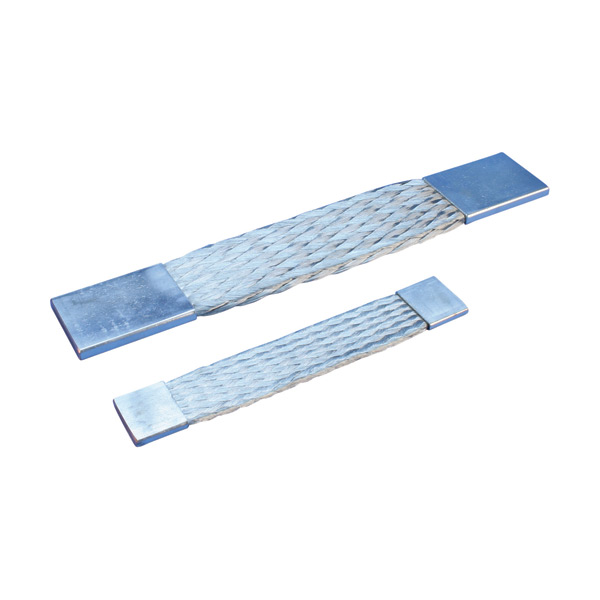

PBC Braided Power Shunt

  • Ideal for transformer-busduct link
  • Solid palms can be drilled to fit customer specific designs
  • Extra flexible power connection and good resistance to vibration

1.3 PBC

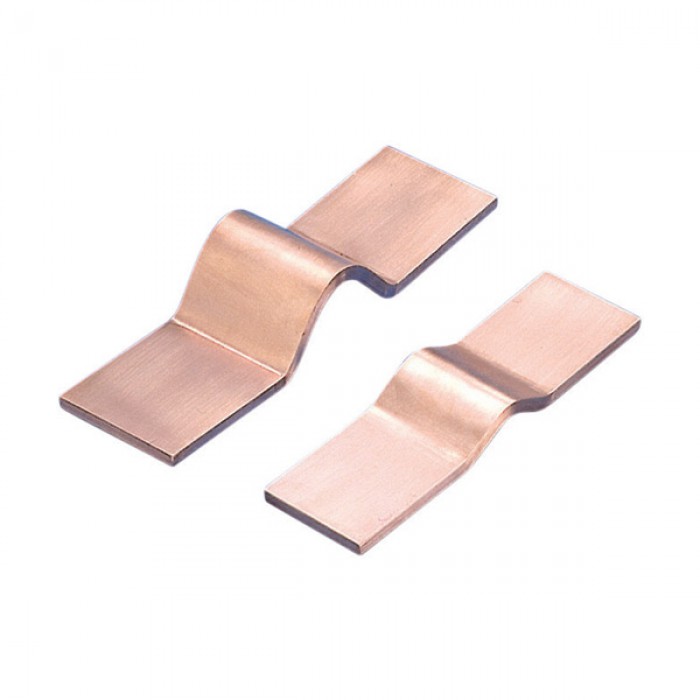

PPS Presswelded Power Shunt

  • Press welded laminations are welded to each other through direct current applied to pieces under pressure
  • Press welding forms a solid palm with the properties of a plain bar
  • Smaller cross section for same capacity
  • Runs cooler than equal section

1.3 PPS







Description

Type

  • Braided Power Shunt
  • Presswelded Power Shunt

Application

Transformer or generator to busbar connection

  • Overcome vibration/alignment problems
  • Power interconnection

Related Market

  • Switchgear & control equipment
  • Power distribution
  • Transportation
