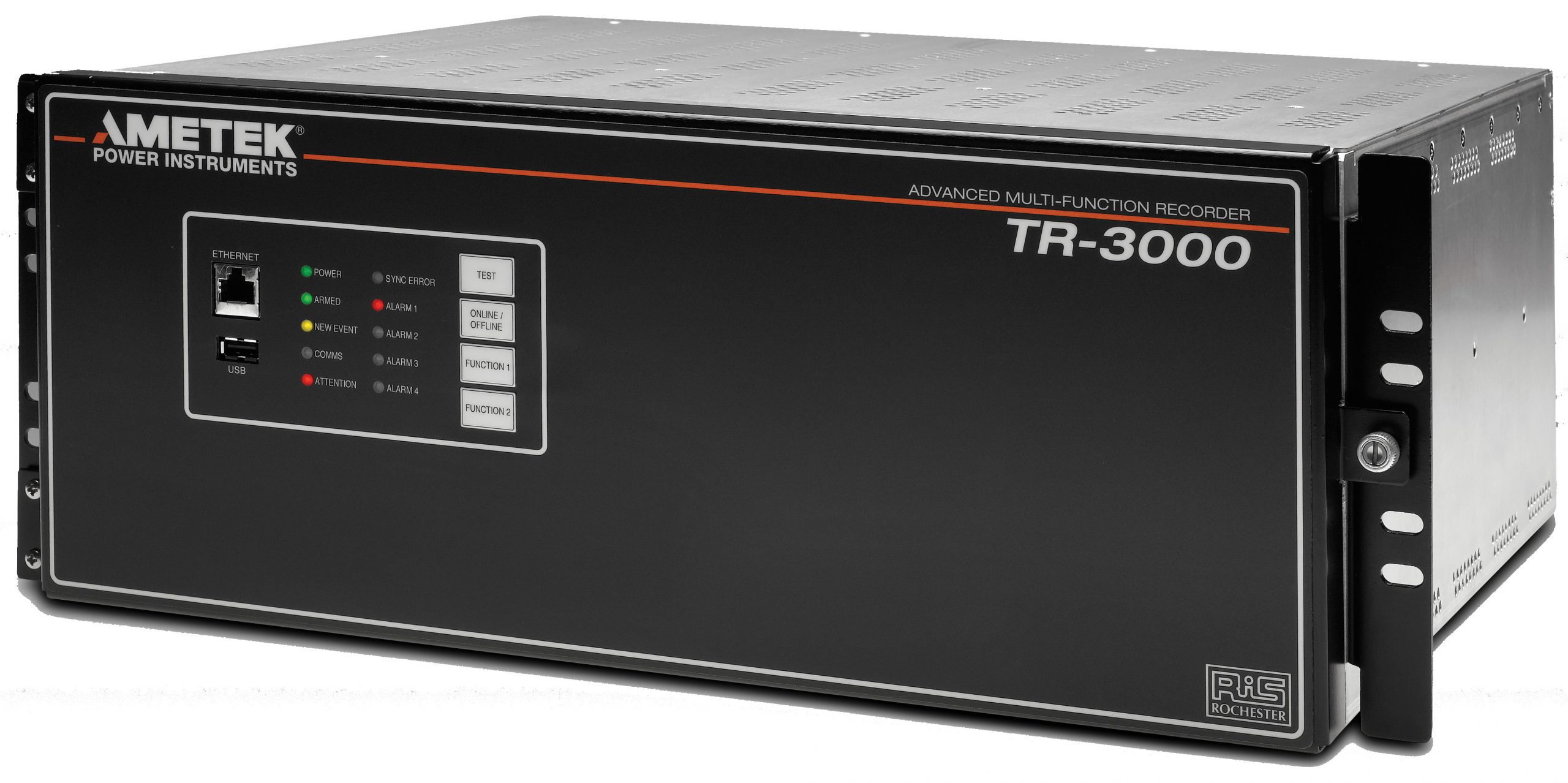

Application
- Fault and Disturbance Recorder
- Transient Fault Location
- Phasor Measurement Unit
- Power Quality Monitor
- Sequence of Events Recorder
Specifications
INPUTS
Analog Inputs
- Built in DSP for computations
- 16 bits, 32768 levels (15 plus sign)
- Fixed 512 samples/cycle (26KHz/31KHz)
- Accuracy better than 0.1% of reading down to 3% of full scale Voltage Input Ranges
- 1.414, 10, 150, 300V RMS full-scale or custom range (AC or DC compatible) Current Input Ranges
- 1 A or 5 A RMS nominal (thru current shunts/CICT’s) Frequency Response
- DC-1/2 sampling rate Digital Inputs
- 24 to 250 VDC normally open or closed wetted contact Input Module
- 6 analog (current or voltage) and 12 digital Inputs System Capacity (1-6 Input Modules)
- 6, 12, 18, 24, 30 or 36 analog
- 12, 24, 36, 48, 60 or 72 digital (multiple units tied together for larger systems)
SYSTEM TIMING
Time Synchronization Accuracy
- 1 usec. or better
- Internal GPS receiver
- IRIG-B (Mod & TTL)
- Network Time Protocol (NTP)
ENCLOSURE
Chassis
- 4U (7”) 19” chassis mount
CERTIFICATIONS
CE
